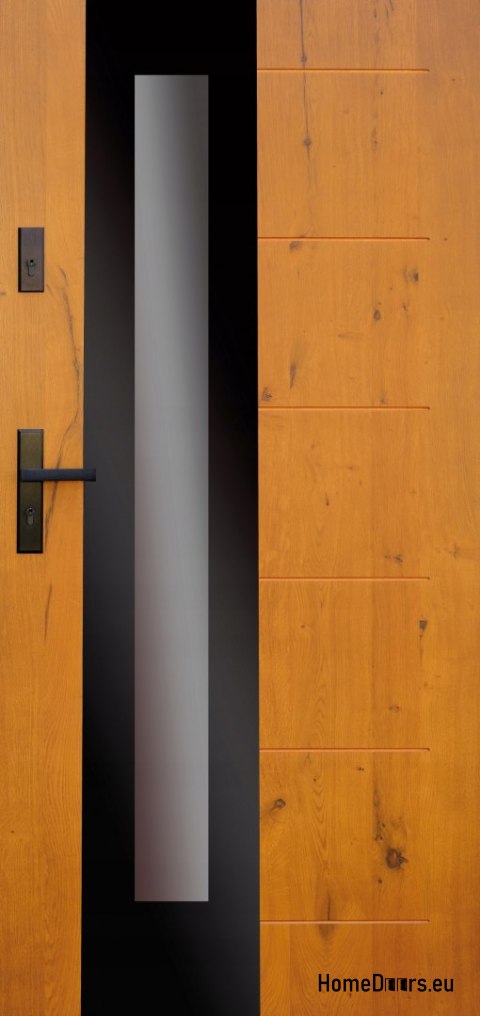

Exterior doors, wooden plate DPC15 WARM

Wooden panel exterior doors DPC15

Wooden panel exterior doors DPC15

Material:

• oak with pine filling
• oak 100% - at an additional charge

Standard equipment:

• 2 independent locks
• 3 high-quality anti-burglary hinges, adjustable in three planes
• glazing: reflex + antisol bronze, black glass insert only on the outside
• anti-burglary locks
• adjustable main lock strike in the frame
• wooden frame – dimension 100x60 mm
• wooden threshold with aluminium overlay
• handle  with cylinders in a one-key system - for an extra charge

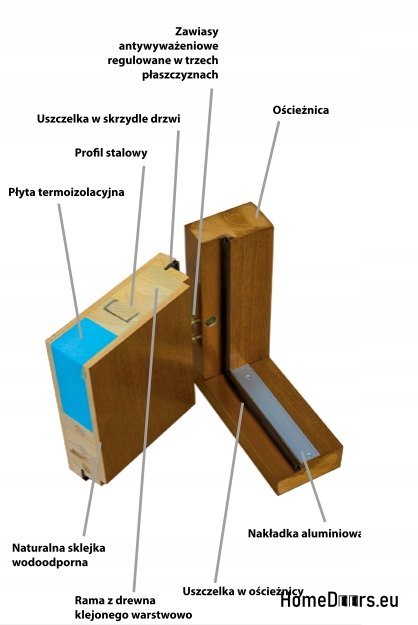

Construction:

• leaf thickness 72 mm
• leaf frame made of glued laminated timber

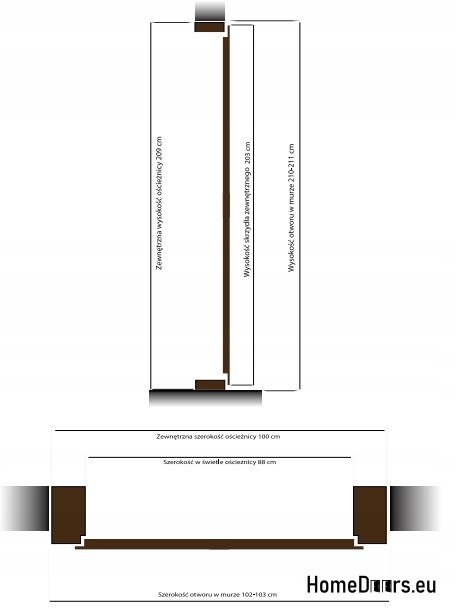

• external dimensions for the "90" door - height 209 cm, width 100 cm
• the sash is covered with natural, 5-layer waterproof plywood with a thickness of 9 mm
• leaf in the rebated system
• frame reinforced with a steel profile on the lock side
• two gaskets in the sash and in the frame
• filling with thermal insulation foam

Finishing touch:

• four-layer system
• Impregnation in a separate process
• painting three times with water-based paints from the renowned TEKNOS company

Thermal parameters:

• thermal transmittance Ud= 1.0 W/m2K (door with a thickness of 72 mm)

Glazing:

• Black glass insert only on the outside of the leaf

AVAILABLE COLORS:

OPTIONS AT AN EXTRA CHARGE (DOOR ACCESSORY)

• HANDLE + CYLINDERS IN THE ONE-KEY SYSTEM - 300 PLN
• STRIP LOCK, AUTOMATIC, THREE-POINT (additional lock [górny] as standard) – 800 PLN
• DOOR CLOSER – 370 PLN
• ELECTRIC STRIKE – 220 PLN
• RAL  DOOR PAINTING - 500 PLN
• PAINTING OF DOORS "TWO-COLOUR" (one from the RAL palette) – 750 PLN
• VISORE – 100 PLN
• SURCHARGE FOR CHANGING THE GLASS FROM STANDARD TO MATTE, REFLEX, ANTISOL – 120 PLN/pcs (for one pane)
• GLASS ONE-WAY MIRROR IN THE DOOR LEAF – 250 PLN/pcs (for one pane)
• ANTI-BURGLARY GLASS P4 – 250 PLN/pcs (for one pane)
• MASKING STRIP, SET FOR ONE SIDE – 370 zł

OPTIONS AT AN EXTRA CHARGE (NON-STANDARD DOOR)

• OAK DOORS 100% - 1900 PLN
• WASH THICKNESS 82 MM  (pine, oak with pine filling) – 500 PLN
• LEAF THICKNESS 82 MM  (oak) – 750 PLN
• NON-STANDARD DOORS WIDER THAN 100 cm (up to 110 cm)  -+ 10%
• NON-STANDARD DOORS WIDER THAN 100 cm (up to 110 cm), higher than 209 cm (up to 220 cm) – + 15%
• NON-STANDARD DOORS WIDER THAN 110 cm, higher than 220 cm - + 20%
• LOWER OR NARROWER DOORS – NO EXTRA CHARGE
• DOOR FRAME WIDENED TO THE WIDTH OF THE WALL (pine, oak with pine floor) – 50 PLN/cm
• DOOR FRAME WIDENED TO THE WIDTH OF THE WALL (oak 100%) – 75zł/cm
• SIDE EXTENSION OF THE FRAME LEG (pine, oak with pine floor) – 50 PLN/cm
• SIDE EXTENSION OF THE FRAME LEG (oak 100%) – 75 PLN/cm
• EXTENSION OF THE UPPER PART OF THE FRAME IN SINGLE DOORS (pine, oak with pine floor) – 30 PLN/cm
• EXTENSION OF THE UPPER PART OF THE FRAME IN SINGLE DOORS (oak 100%) – 40 PLN/cm

OPTIONS AT AN EXTRA CHARGE (EXTRA BEDS)

• SIDE EXTENSION - WING IMITATION UP TO 500 mm - + 70%
• SIDE EXTENSION - IMITATION OF A LEAF FROM 500 mm TO 750 mm - + 75%
• SIDE EXTENSION OPEN UP TO 500 mm - + 80%
• SIDE EXTENSION OPENING FROM 500 mm TO 750 mm - + 90%

SIDE EXTENSION - GLAZING IN THE FRAME

• UP TO 500 mm (FOR PINE DOORS) - 3200 PLN
• FROM 500 mm TO 750 mm (FOR PINE DOORS) - 3600 PLN
• UP TO 500 mm (FOR OAK DOORS WITH PINE FILLING) - 3600 PLN
• FROM 500 mm TO 750 mm (FOR OAK DOORS WITH PINE FILLING) - 3950 PLN
• UP TO 500 mm (FOR DOORS 100% OAK) - 4300 PLN
• FROM 500 mm TO 750 mm (FOR DOORS 100% OAK) - 4920 PLN
• GLASS ONE-WAY MIRROR IN SIDE EXTENSION - GLAZING IN THE FRAME - 500 zł

OPTIONS AT AN EXTRA CHARGE (FANLIGHTS)

FANLIGHT FOR SINGLE DOORS

• FOR PINE DOORS UP TO 500 mm - 1500 PLN
• FOR OAK DOORS WITH PINE FILLING UP TO 500 mm - 1750 PLN
• FOR DOORS 100% OAK UP TO 500 mm - 2100 PLN

OVERHEAD TRANSOM FOR DOORS WITH SIDE EXTENSION

• FOR PINE DOORS UP TO 500 mm - 2200 PLN
• FOR OAK DOORS WITH PINE FILLING UP TO 500 mm - 2500 PLN
• FOR DOORS 100% OAK UP TO 500 mm - 3000 PLN
• ONE-WAY MIRROR GLASS IN AN OVERHEAD FANLIGHT - 400 PLN

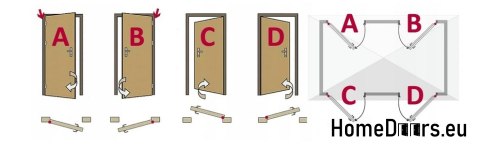

DOOR OPENING DIRECTION

VIEW FROM THE INSIDE OF THE BUILDING / ROOM

• right door - if you see the hinges on the right opening the door on itself
• left door - if you see the hinges on the left side opening the door on itself

Remark! In order to match the appropriate door to your individual needs, please send information about the selected opening direction and door color after purchase

• A - left door opening inwards
• B - right door opening inwards
• C - left door opening outwards
• D - right-hand door opening outwards
