Automatic garage door with 2500x2125mm Antracite drive

Automatic garage door segment IsoMatic + drive IsoMatic 500 | 2500 × 2125 mm | Anthracite color

You're looking a warm, solid and safe garage door with automatic drive included?

Model IsoMatic It's modern. segment garage door with German technology, designed for people who expect durability, thermal isolation and unfailing work over the years.

It's a complete solution. gate + drive + 2 pilots, ready for installation.

❌ The main advantages of the IsoMatic garage door

• Segments 42 mm – Polyurethane foam provides excellent insulation and high rigidity of the structure.
• Excellent thermal insulation – U0 ratio = 1,3 W/(m2·K)ideal for heated and residential garages.
• Corrosion protection – a surface covered with high quality polyester coating, resistant to atmospheric conditions.
• Safety of use – protection against fingers on the sides and both sides of the plate.
• Silent Work – thanks to segment construction and precise balance.
• Small Mounting Requirements – only 125 mm cap and 90 mm loose on the sides.
• Automatic stop at obstacle – the safety system reacts immediately.

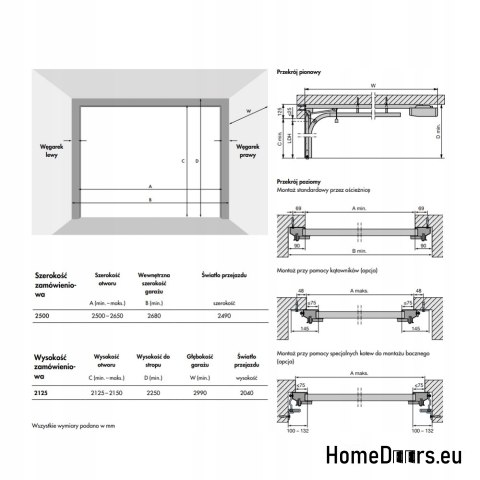

▶ Dimensions and construction

• Gate dimension: 2500 × 2125 mm
• Segments: 42 mm, warm
• Required surpluses: 125 mm
• Required place on the sides: 90 mm
• The set contains a blende levelling cross-section

IsoMatic 500 Drive – included!

Modern and reliable drive suitable for 7 m2 gates.

❌ Functions and parameters:

• Two pilots included – Ergonomic, with rolling code Code (433 MHz)
• LED lighting – 2-minute light after opening
• Maximum pull and pressure: 500 N
• Opening speed: 10.5 cm/s
• Pre-assembled two-piece rail – quick and simple installation
• Optional: emergency locking

Why choose this gate?

Warm and energy-efficient – you save on heating

Silent work and reliability – ideal for home buildings

German quality – durability for years

Complete set – you don't have to buy the drive

Package content

• Segment garage door IsoMatic
• IsoMatic 500 Drive
• 2 pilots
• Blenda levelling
• Mounting accessories
• Instructions

IsoMatic 500 Drive – Key Information

🔧 Technical specifications

• Power supply: 230 V AC
• Pull force/pressure: 500 N
• Maximum opening/closure speed: 10,5 cm/s
• Supported gate surface: up to approx. 7 m2

Functions and equipment

• Includes: dual channel pilot integrated with radio receiver Frequency 433 MHz, Code Walking / Rolling Code) – safe control without fear of copying the signal. Perfectsklep.pl+1
• Pre-assembled two-piece guide rail – facilitates the installation of the drive.
• Built-in lighting – after opening the gate the light works for 2 minutes, making it easier to enter after dark.
• Automatic stop and undo where an obstacle is encountered, it shall increase the safety of use.

🏡 Application

• Drive designed for segment gates
• Perfect for domestic use (home garages).

📦 Set contains (in standard version)

• IsoMatic 500 drive head
• Two channel remote control (with RSC2 receiver)
• Two-piece guide rail
• Built-in lighting lamp
• Mounting elements

Security and service

• Drive equipped with automatic security: stop and undo the gate in case of an obstacle.
• In the instructions, the manufacturer emphasizes that the installation, maintenance and possible repairs should be performed by persons with appropriate qualifications.
• The drive is designed for private use; not intended for intensive industrial work.

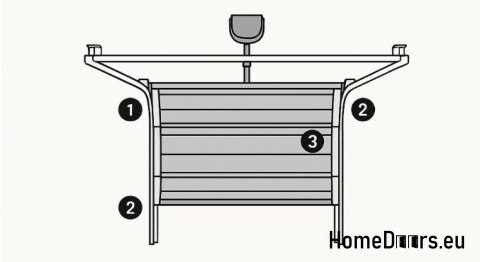

1. Specially shaped roller covers guarantee complete closure of the gate in the area of the ramp

2. Double tension springs on the side frames provide a high level of safety when handling the gate. The patented spring system in the spring together with the safety link prevents the cracked spring from falling out

3. Steel ropes and tension springs are hidden in a closed frame eliminating the risk of crushing fingers, and the shape of gate segments and terminals minimises the risk of cutting
