Milled pine wooden doors with a fixed frame Boston BS-11 60

Milled Pine Wooden Doors Boston BS-11

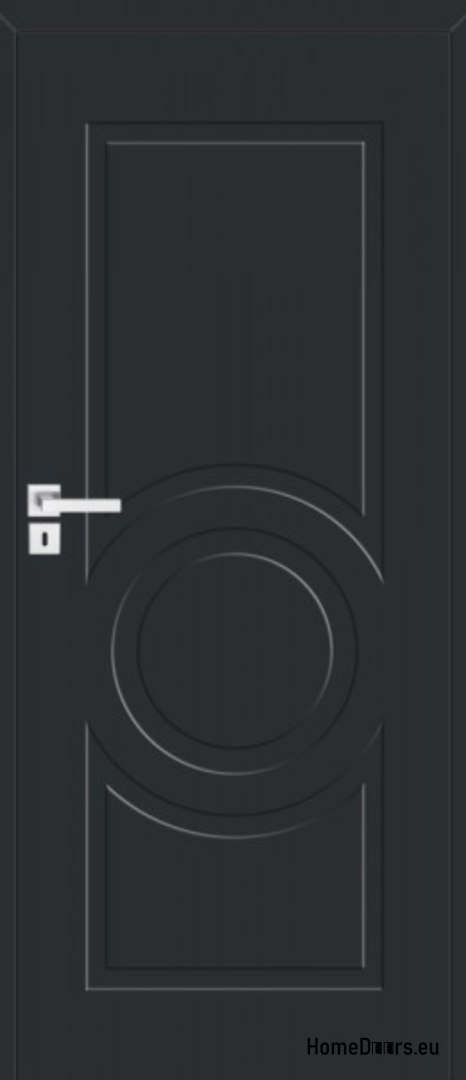

Milled wooden doors characterized by modern design and minimalism. This type of door is characterized by shallow milling in the door plane, which gives the leaf and the interior of the room an original look.

Specifications:

• door leaf thickness 40mm
• The door leaf is knotless, natural pine, ash or oak at an extra charge
• sash frame filled with milled or smooth panel
• door surface finished with stains and varnishes
• possibility of making doors with an upper or side transom
• Technical approval AT-15-6912/06

Available finishes:

• Color: Smooth White
• smooth in the RAL palette
• in oak veneer in RAL colour
• in RAL ash veneer

Standard equipment:

• mortise lock with 72/50 spacing (cylinder, key, toilet lock) or savings lock for the handle only
• straight screw-in hinge (2 or 3 pieces)

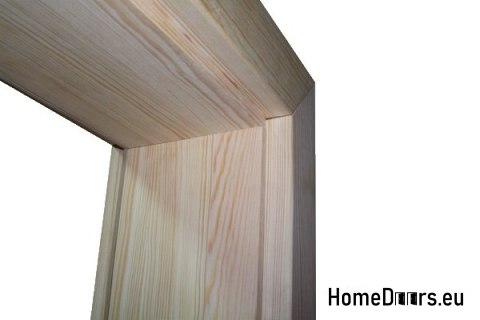

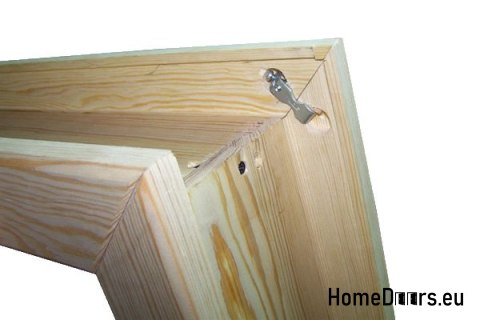

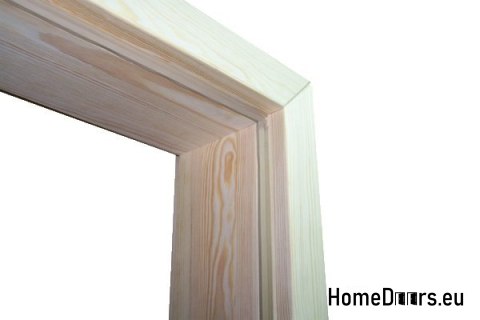

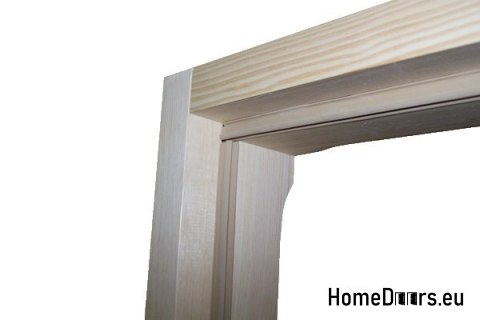

• fixed door frame
• adjustable hinge at an extra charge

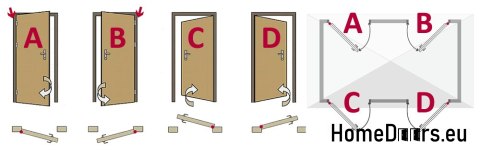

Door opening direction:

VIEW FROM THE INSIDE OF THE BUILDING / ROOM

• right door - if you see the hinges on the right opening the door on itself
• left door - if you see the hinges on the left side opening the door on itself

Remark! In order to match the appropriate door to your individual needs, please send information about the selected door opening direction AFTER PURCHASE.

• A - left door opening inwards
• B - right door opening inwards
• C - left door opening outwards
• D - right-hand door opening outwards

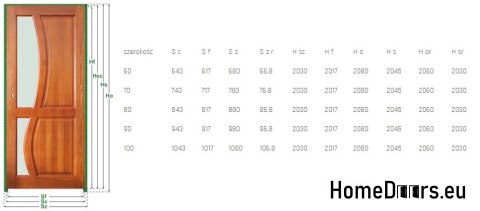

Dimension Table:

Legend:

• S c - total width of the leaf
• S f - width of the leaf in the fold
• S z - width of the door with the frame
• S z r - door width with adjustable frame
• H sc - total height of the leaf
• H f - height of the wing in the falt
• H o - total height of the frame
• H s - height from the bottom of the sash to the top of the frame
• H or - total height of the adjustable frame
• H sr - height from the bottom of the sash to the top of the adjustable frame

Metric unit mm

REMARK!!! Ready-finished doors are prepared for installation and are available with a clearance of 10 mm (this is the height from the bottom edge

frame to the bottom edge of the sash) In this case, Ho is 2055 mm, in the case of an adjustable frame

Hor 2040mm (cover of the bands in height - 2095 mm, in width "60" - 755 mm, "70" - 855 mm, "80" - 955 mm and "90" - 1055 mm)

Surcharge:

• Wooden threshold - 80 PLN
• drilling holes for ventilation sleeves - 50 PLN
• ventilation undercut - 50 PLN
• adaptation of sashes to the sliding system non-rebated (without fittings) - 200 PLN
• Execution of doors that are unusual in terms of size - one unusual - 100 PLN
• Execution of doors that are unusual in terms of size - two (and more) atypicalities - 150 PLN
• fixed door frames for wall thickness - 35 PLN / 1 cm
• wall-mounted sliding system with a grille - 350 PLN
• camouflage band - 160 PLN/set
• quarter round - 100 PLN/set
• adjustable hinge - 100 PLN/set
• magnetic lock - 120 PLN
• door in oak or ash veneer with a fixed frame – 300 PLN
• adjustable frame in ash or oak veneer – 200 PLN

Surcharges - adjustable door frames:

Range (mm)   /  Offer number in Allegro (copy the offer number and paste it in the Allegro search engine)

• 90-110            11593673297
• 110-130          11593703464
• 130-150          11593707174
• 150-170          11593709340
• 170-190          11593712562
• 190-210          11593715129
• 210-230          11593716617
• 230-250          11593718568
• 250-270          11593728257
• 270-290          11593730560
• 290-310          11593732324
• 310-330          11593734258
