Technical Doors Steel Hörmann 90x200 RAL7035 Grey

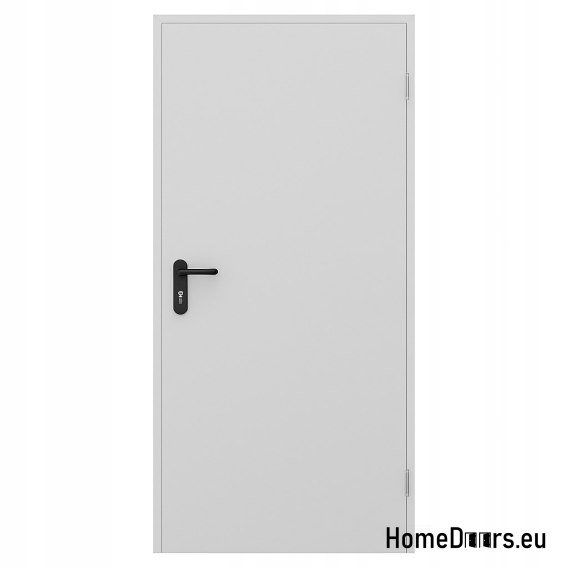

Technical door Steel Hörmann ZK ISO – RAL 7035– 900×2000

The original steel technical door Hörmann ZK ISO is ideal for garages, business premises, technical premises, warehouses, boiler rooms, workshops and facilities where durability, resistance and reliability are important. The construction based on a 0.6 mm steel sheet and a 1,5 mm strong frame guarantees long-term durability and seamless use.

Key features:

• Universal wing: left/right (any direction during assembly)
• Durability: min. 100,000 cycles open
• Climate resistance: Class III
• Zinc plated steel, powder-coated
• Wing thickness: 40 mm
• Fill: insulating polystyrene
• Steel casing 1.5 mm – welded, very rigid

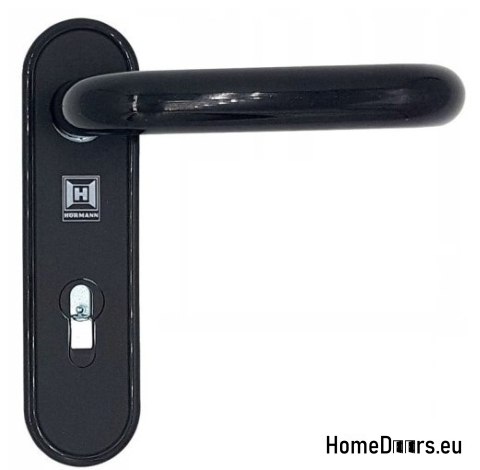

• Set of plastic handles + lock for patent insert
• 2 solid two part hinges
• Color: RAL 7035 (grey)

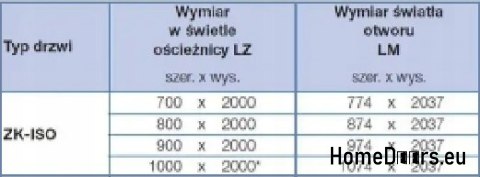

Dimensions available in the offer:

• Wing: 900 × 2000 mm
• Mounting hole lamp after mounting of the frame: 974 × 2037 mm

  (in other auctions available in dimensions 700 / 800 / 900 / 1000 × 2000 mm)

Application:

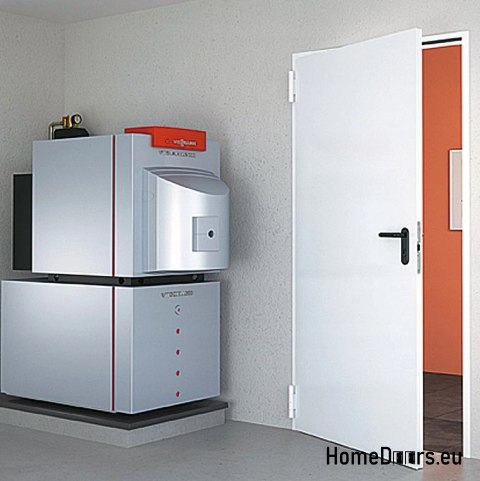

Doors ideal for: garage, boiler room, basement, workshop, farm rooms, warehouse, technical facilities, industrial buildings and unheated rooms. Great as a durable steel door for all working and usable spaces.

Package content:

• Steel door wing Hörmann ZK ISO
• Steel wall welded 1,5 mm
• Lock inserted (under patent insert – no insert included)
• Plastic handle set
• Envelope seals
• 2 two part hinges

Technical parameters:

• Material: galvanized steel
• Wing sheet thickness: 0,6 mm
• Frame thickness: 1,5 mm
• Wing thickness: 40 mm
• Fill: Styrofoam
• Opening direction: universal (L/P)
• Painting: powder
• Climate resistance: III

Product advantages:

• High durability – galvanized steel + welded frame
• Resistance to non-heated indoor conditions
• Quick and simple installation
• Modern RAL colours matching most objects
• Product of renowned brand Hörmann – German quality and durability

Fittings:

• Lock in, adapted for patent insert
• Plastic clamps (PP)
• Sign matching insert
• Steel hinges 2-part

Frame:

Special welded angle frame with 1,5 mm thickness, with shock absorbing seal on three edges. It has prepared mounting anchors and holes for mounting through lico frames.
